Create value for customers, keep customers satisfied, and be respected by customers.
| Place of Origin: | China |
|---|---|
| Brand Name: | Douwin |
| Certification: | ISO, CE，Energy Saving Technology Certification |
| Model Number: | DWA-Custom-A30B150-H-W |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiate |
| Packaging Details: | Packed with Film Firstly, and then Reinforced with Wooden Case for Outer Packing |
| Delivery Time: | 5 weeks after order confirmed |
| Payment Terms: | T/T |
| Supply Ability: | 150 Sets per Month |
| Item Name: | 2022 Double Door Large Capacity Walk In Test Chamber With Slope For Testing Car Unit | Temperature Range: | -30～+150℃ |
|---|---|---|---|
| Temperature Change Rate: | Custom | Support Service: | ODM, OEM |
| Highlight: | 2880L Walk In Test Chamber,Walk In Test Chamber With Slope,25%RH Walk In Environmental Chamber |
||

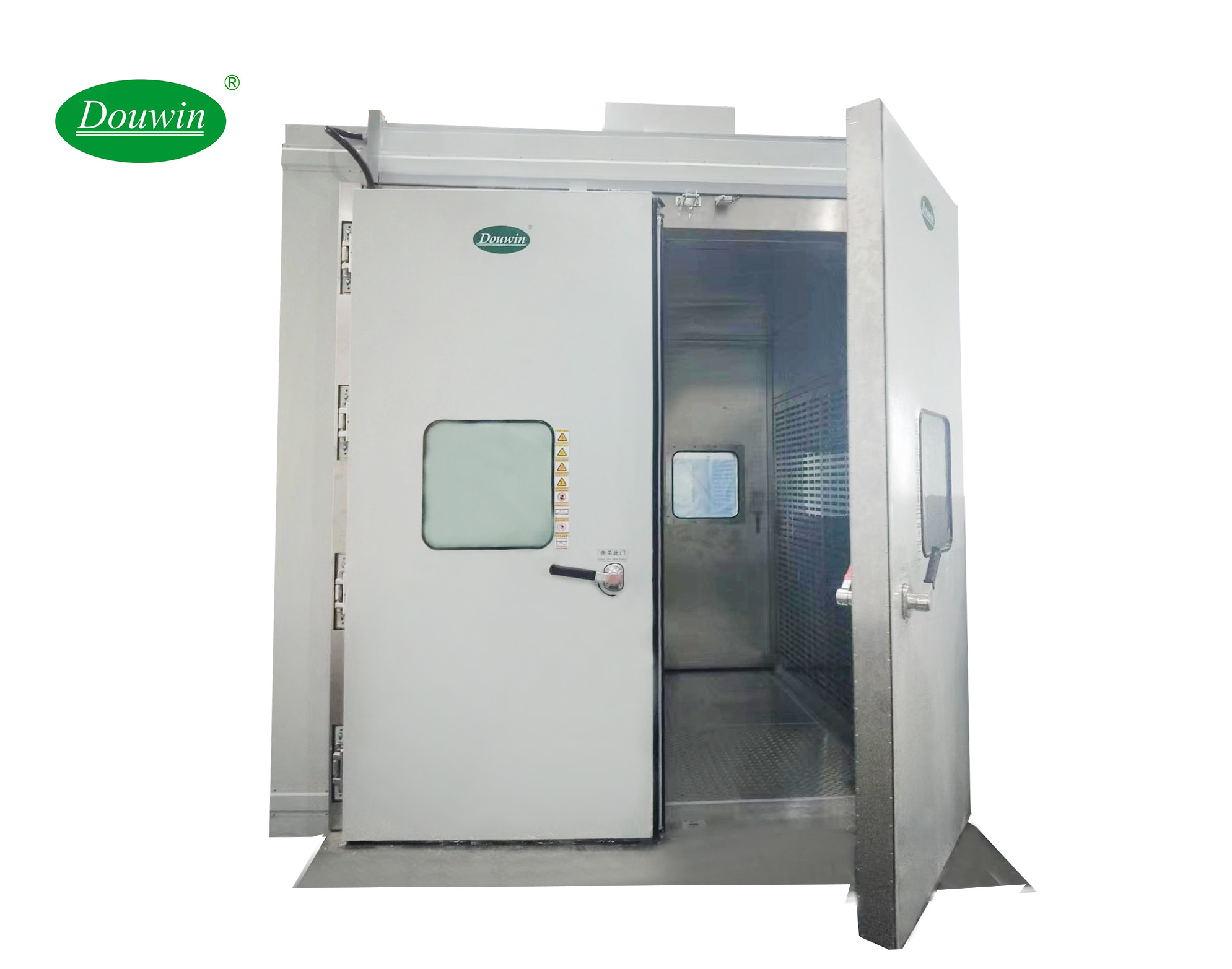

2022 Double Door Large Capacity Walk In Test Chamber
With Slope For Testing Car Unit
Application:
|
Corresponding Standard:
| GB/T 5170.2-2008 |
| GB/T 5170.5-2008 |
| GB/T 2423.1-2008(IEC60068-2-1:2007) |
| GB/T 2423.2-2008(IEC60068-2-2:2007) |
| GB/T 2423.3-2016(IEC60068-2-78:2012) |
| GB/T 2423.4-2008(IEC60068-2-30:2005) GB/T 2424.7-2008 |
| GJB 150.3A-2009 |
| GJB 150.4A-2009 |
|
GJB 150.9A-2009 |
Technical Parameters :
| Item Name | 2022 Double Door Large Capacity Walk In Test Chamber With Slope For Testing Car Unit |
|
Model |
DWA-2880-A30B150-H-W |
| Workspace Dimensions(MM) | 1200×1200×2000 |
| Volume(L) | 2880 |
| Temperature Change Rate |
1/5/10/15℃/min |
| Temperature Range |
-30～+150℃ |
| Humidity Range | 25%～95%RH |
| Power Supply | 380VAC±10%,50Hz±1% |
| Temperature Uniformity | ≤2℃(No Load) |
| Temperature Fluctuation | ≤±0.5℃(No Load) |
| Temperature Deviation | ≤2℃(No Load) |
| Humidity Deviation | ±3%RH(＞75%RH no load),±5%RH(≤75%RH no load) |
| Resolution | 0.1℃,1%RH |
| Standard Configuration |
Φ100mm cable port×2,with soft high-low temperature resistant rubber plug equipped with standard RS232/RS485/RJ45 communication interface Interior light |
Main Features:
| 1. The chamber adopts humanized man-machine interaction interface,it is so easy for buyer to operate it. |
| 2. The chamber is matched remote monitoring software, and provides RS232/RS485/RJ45 standard communication interfaces to realize the remote control and management of the test chamber. |
| 3. The chamber has reasonable layout,stable performance and low noise, so it is very suitable for various laboratories and production lines. |
| 4. The chamber adopts innovative energy-saving technology and has passed the national energy-saving certification. Compared with other similar products,our chamber helps saving 38% energy. |
| 5. The chamber with advanced control logic and PID adjustment technology so that it can maintain long-term stable operation. |
| 6. The chamber has multiple protection functions,which ensure the safety and reliability of product testing |
| 7. The main components of the chamber are from international premium brands,so the whole machine has high reliability. |
